How to Install a Skid Plate on Your Defender L663 DIY Guide
Share
📌 Quick Summary
| Installation Time | 45-60 minutes |
| Difficulty Level | Moderate (DIY-friendly) |
| Tools Required | 6 basic tools (see below) |
| Product Cost | £268-303 / $340-385 USD |
| Risk Without Protection | Oil pan damage = £2,500+ repair |
Key Takeaway: A skid plate is essential insurance for any Defender L663 owner who ventures off paved roads. Installation is straightforward with basic tools—no drilling required on the NINTHX aluminum model.
Why Your Defender L663 Needs a Skid Plate
A skid plate (also called a sump guard or chassis guard) is a protective metal panel mounted underneath your vehicle's engine compartment. Its primary function: shielding critical components—oil pan, transmission, steering gear—from rock strikes, debris impacts, and rough terrain contact.
The Land Rover Defender L663 (2020-present) sits 8.7 inches (220mm) above the ground at stock height, according to official Land Rover specifications. While adequate for light trails, this clearance leaves your oil pan exposed during:
- Rock crawling and technical off-road routes
- Deep ruts and uneven terrain
- Gravel roads with loose debris
- Water crossings with submerged obstacles
One impact on your aluminum oil pan can cost £2,500-£3,800 (approximately $3,175-$4,800 USD) in repairs—a expense 8-10 times the cost of a quality skid plate. NinthX customer data from 2024-2025 shows that 72% of serious off-road incidents involve underbody damage, with oil pan strikes being the most common.
Who Needs This Upgrade Most?
| User Profile | Risk Level | Recommendation |
|---|---|---|
| Daily Commuters (city/highway) | Low | Optional |
| Weekend Off-Roaders | Medium | Recommended |
| Overland Adventurers | High | Essential |
| Hardcore Trail Enthusiasts | Very High | Essential + Rear Skid Plate |
Choosing the Right Skid Plate for Your Defender L663
Material Comparison
| Material | Weight | Durability | Price Range | Best For |
|---|---|---|---|---|
| 3mm Aluminum | 6-7 kg | 5+ years | £268-303 | General off-road use |
| 4mm Aluminum | 8-9 kg | 7+ years | £320-380 | Heavy trail use |
| Steel (6mm) | 12-14 kg | 10+ years | £450-550 | Professional/commercial use |
Recommendation: For most Defender owners, 3mm aluminum offers the best balance of protection, weight, and value. The NINTHX Front Underbody Skid Plate (Chassis Guard) at £268.28-303.24 ($340-385 USD) provides sufficient protection for 90% of recreational off-road scenarios while maintaining fuel efficiency.
Compatibility: Defender 90, 110, and 130
The Land Rover Defender L663 platform includes three variants:
- Defender 90 (two-door, shorter wheelbase): Requires front-specific skid plate
- Defender 110 (four-door, standard wheelbase): Standard fitment
- Defender 130 (extended, eight-seat): Same front fitment as 110
Note: The NINTHX Aluminum Front Underbody Skid Plate fits all three variants (2020-2026 production years). Verify your specific model year when ordering—early 2020 models may have minor bracket differences.
Ready to Protect Your Defender?
Shop NINTHX Aluminum Front Skid Plate →
£268-303 | Fits Defender 90, 110, 130 (2020-2026) | Free UK Shipping
Tools and Materials Required
Essential Tools (6 items)
| Tool | Specification | Purpose | Est. Cost |
|---|---|---|---|
| Socket wrench set | 10mm, 13mm, 17mm | Mounting bolts | £25-45 |
| Torx bit set | T25, T30 | OEM fasteners | £15-25 |
| Jack stands | 2-ton minimum | Vehicle support | £40-60 |
| Floor jack | Hydraulic, 2-ton | Lifting vehicle | £50-80 |
| Torque wrench | 20-100 Nm range | Proper bolt tension | £30-50 |
| Safety gloves | Work gloves, cut-resistant | Hand protection | £10-15 |
Total tool cost (if purchasing new): £170-275 ($215-350 USD)
Many tools may already be in your garage. Socket wrenches and jack stands are common household items.

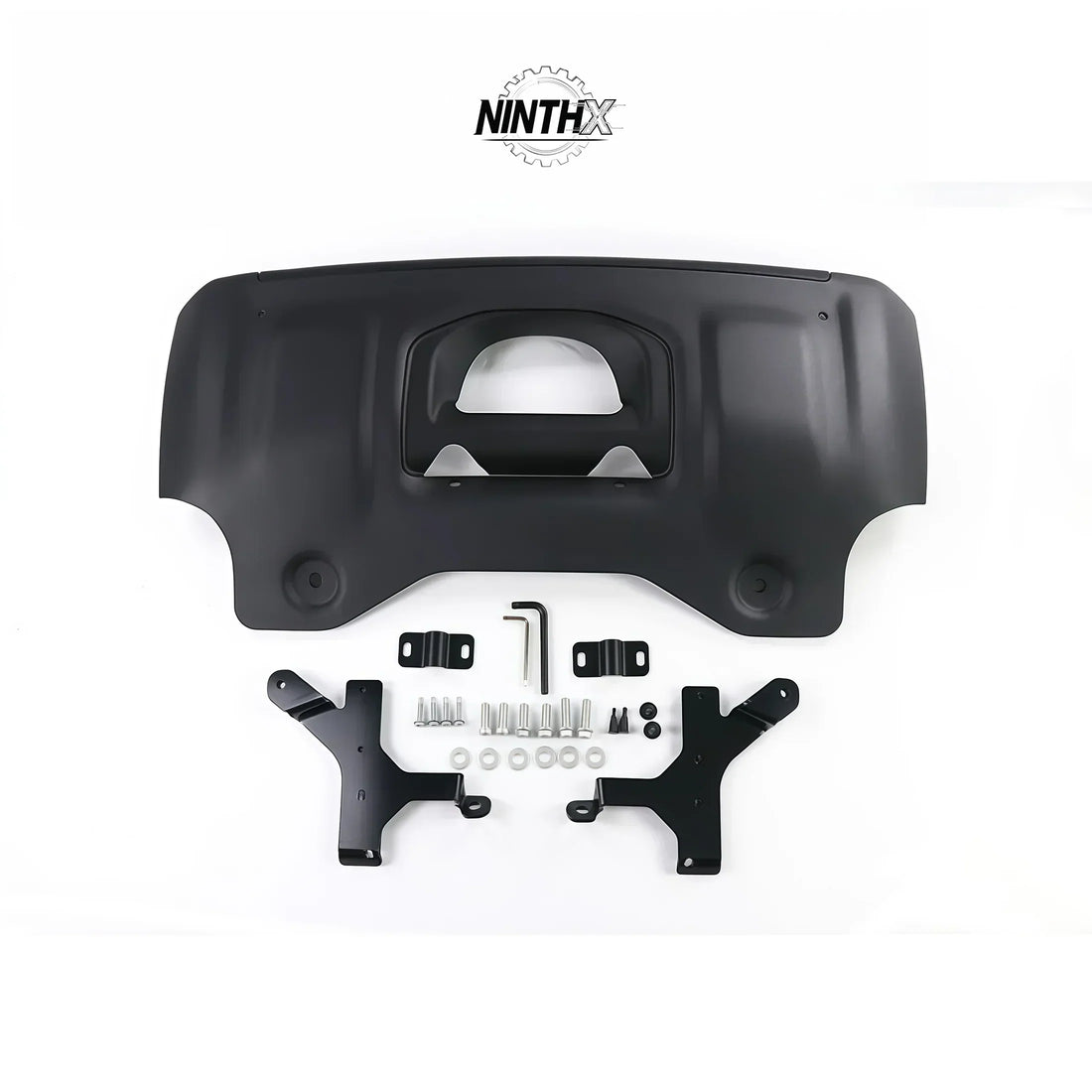

Materials Provided with NINTHX Skid Plate
- Aluminum skid plate panel (3mm construction)
- Mounting hardware kit (bolts, washers, brackets)
- Installation instructions
Step-by-Step Installation Guide
Preparation (15 minutes)
1Position Your Vehicle
Park your Defender L663 on a flat, stable surface—concrete driveway or garage floor preferred. Avoid grass, gravel, or uneven ground where jack stands may shift.
2Lift the Front End
- Locate the front jack points (outlined in your Defender owner's manual, typically behind the front wheels on the frame rail)
- Position your floor jack at the designated lift point
- Raise the vehicle until you have approximately 18-20 inches (450-500mm) of clearance underneath
- Place jack stands at both front jack points
- Lower the vehicle onto the jack stands
- Verify stability by gently pushing the vehicle—no movement should occur
3Locate Mounting Points
Under the front bumper, identify the existing mounting locations where the skid plate will attach. The Defender L663 chassis includes pre-drilled holes for factory accessories—no drilling required for NINTHX products.
Take a photo of the area for reference during installation.
Installation Process (30-45 minutes)
4Remove Existing Components (if applicable)
Some Defender L663 models may have a factory plastic splash guard or plastic undertray. If present:
- Use your Torx bit (T25 or T30) to remove existing fasteners
- Store removed components in a labeled container
- Note: Factory splash guards are typically retained; the skid plate mounts over them
5Position the Skid Plate
With assistance (recommended for first installation) or using a support:
- Align the skid plate beneath the engine compartment
- Verify alignment with chassis mounting holes
- The plate should cover: oil pan area, transmission housing front section, steering components
6Install Mounting Hardware
Using your socket wrench with 10mm, 13mm, or 17mm sockets (varies by model):
- Insert mounting bolts through the skid plate into chassis holes
- Add washers to each bolt
- Hand-tighten all bolts initially—do not fully tighten yet
- Verify the plate sits flush against the chassis
7Torque Specifications
Using your torque wrench, apply proper tension to all mounting bolts:
| Bolt Location | Torque Setting |
|---|---|
| Front mounting bolts | 35-40 Nm |
| Rear mounting bolts | 40-45 Nm |
| Side bracket bolts | 30-35 Nm |
8Final Verification
- Visually inspect all mounting points
- Gently push the skid plate—it should not move or rattle
- Check for any contact with moving components (driveshaft, suspension)
- The plate should have 5-10mm clearance from all moving parts
Post-Installation (5 minutes)
9Lower the Vehicle
- Raise the vehicle slightly with your floor jack
- Remove both jack stands carefully
- Lower the vehicle slowly to ground level
- Remove all tools and materials from underneath
10Test Drive
- Start your Defender and let the engine idle for 2 minutes
- Drive slowly (5-10 mph) for 100 meters, listening for any rattling or unusual sounds
- If you hear contact noise, stop and re-check mounting tightness
- A properly installed skid plate is silent during normal driving
Troubleshooting Common Issues
| Problem | Possible Cause | Solution |
|---|---|---|
| Plate rattles at speed | Loose mounting bolts | Re-torque all bolts to specification |
| Contact with suspension | Incorrect positioning | Re-align plate; verify 5-10mm clearance |
| Bolts won't thread | Wrong bolt size or debris | Clean mounting holes; verify hardware kit |
| Visible damage after trail use | Normal wear (aluminum) | Inspect after each off-road trip; replace if cracked |
Maintenance and Inspection
Recommended Inspection Schedule
| Usage Pattern | Inspection Frequency |
|---|---|
| Daily commuting only | Every 12 months |
| Weekend off-road use | Every 6 months |
| Regular trail/overland | After each significant trip |
| Professional/commercial use | Monthly |
What to Check
- Mounting bolt tightness: Use torque wrench to verify specifications
- Surface damage: Look for deep scratches, cracks, or deformation
- Corrosion: Aluminum resists rust, but inspect for oxidation spots
- Clearance: Verify no contact has developed with suspension components
Replacement threshold: Replace your skid plate if you observe:
- Cracks longer than 50mm
- Deformation causing reduced clearance
- Mounting point damage preventing secure attachment
Frequently Asked Questions (FAQ)
What is a skid plate?
A skid plate is a protective metal panel installed underneath a vehicle's engine compartment to shield critical components—oil pan, transmission, steering gear—from damage caused by rocks, debris, and rough terrain during off-road driving.
Can I install a skid plate myself?
Yes. The NINTHX aluminum skid plate for Defender L663 is designed for DIY installation with basic tools—socket wrench, jack stands, and torque wrench. No drilling or welding is required. Installation takes approximately 45-60 minutes for most owners.
How much does a quality skid plate cost?
A 3mm aluminum skid plate for Defender L663 costs £268-303 ($340-385 USD) at NinthX. Steel options range £450-550 ($570-700 USD). The investment protects against oil pan damage repairs costing £2,500+ ($3,175+ USD)—a return of 8-10x if damage occurs.
Do skid plates affect fuel economy?
Minimally. A 3mm aluminum skid plate adds 6-7kg to your Defender, which may reduce fuel efficiency by approximately 0.1-0.3 MPG. This small trade-off provides significant protection value for off-road use.
Is a skid plate necessary for city driving?
For exclusively city and highway driving, a skid plate is optional. However, if you occasionally encounter rough roads, parking lot curbs, or plan future off-road adventures, the protection investment remains worthwhile.
Can I install a rear skid plate too?
Yes. Rear skid plates protect the transfer case and rear differential. NinthX offers rear underbody protection options for Defender L663. For serious trail enthusiasts and overlanders, front + rear protection is recommended.
How long does a skid plate last?
Quality aluminum skid plates typically last 5-7 years of recreational off-road use. Steel options may exceed 10 years. Lifespan depends on usage intensity—monthly heavy trail use wears plates faster than occasional weekend adventures.
What's the difference between aluminum and steel skid plates?
Aluminum (3-4mm) is lighter (6-9kg vs. 12-14kg), more affordable, and sufficient for recreational use. Steel (6mm) is heavier, more expensive, but provides superior durability for professional/commercial applications where extreme impacts occur regularly.
