Defender L663 Recovery Gear Kit (2026): Buyer's Guide
By the NinthX Editorial Team · Updated 30 May 2026 · 11 min read
Key Takeaways
Summary Box. A complete Defender L663 recovery gear kit is built from 5 items: a winch (9,500–12,000 lb), two rated shackles, a snatch strap or kinetic rope, a pair of recovery boards, and a tree-protector strap. Entry-level kits start near £250; a winch-equipped overland setup typically runs £1,200–£2,200. Defender L663 recovery points are rated to 3,500 kg at the rear factory eye and 4,750 kg at the front aftermarket mount. Skip the soft-shackle math, and a 12,000 lb cable snap can release 40,000+ joules of kinetic energy. Get the kit right the first time.
A Defender L663 recovery gear kit is the matched set of winch, rated shackles, dynamic recovery line and ground aids needed to self-recover a 2020+ Land Rover Defender from mud, sand or snow without damaging chassis-mounted recovery points. NinthX is a Land Rover Defender L663 parts brand selling premium recovery hardware, skid plates and overland upgrades to owners in the UK, EU and US. This guide answers the most common question we get: what does a complete Defender L663 recovery gear kit actually look like in 2026, and where do you put the winch? Below you'll find a 5-piece kit checklist, current UK pricing, the exact recovery-point ratings printed on L663 factory hardware, the maths behind shackle selection, and an 8-step single-line winch pull procedure. Every figure here is referenced; every product link goes to inventory we actually stock and ship.
What's inside a complete Defender L663 recovery gear kit?
A Defender L663 recovery gear kit is not one product — it is a paired system where each component is rated to match the others. Mismatched ratings are the single most common cause of recovery failures we see in owner photos. The minimum kit is:
| # | Component | Typical L663 spec | UK entry price |
|---|---|---|---|
| 1 | Winch | 9,500–12,000 lb pull | £450–£900 |
| 2 | Shackles ×2 | 4.75 t WLL bow or soft | £18–£45 each |
| 3 | Snatch strap or kinetic rope | 8 t × 9 m strap, or 9 t × 9 m rope | £55–£135 |
| 4 | Recovery boards ×2 | 1.1 m × 0.33 m, ≥4 t static load | £75–£165 |
| 5 | Tree-protector strap | 3 m, ≥5 t WLL | £18–£28 |
Add a front winch mount cradle (£260+) if you are running a winch — the Defender L663 factory bumper has no integrated winch tray. Add a rated rear recovery ring (£50–£70) because the OEM rear tow eye on a Defender 110 is designed for static towing, not snatch loads. We will return to both of those below.
Winch selection: 9,500 lb vs 12,000 lb, synthetic vs steel
The single biggest specification choice is winch capacity. The rule used by Warn, Comeup and Smittybilt is vehicle weight × 1.5 = minimum winch rating. A Defender 110 D300 weighs 2,495 kg (5,500 lb) kerb, so the maths gives 8,250 lb minimum. A 90 sits at 2,248 kg (7,432 lb minimum); a 130 at 2,723 kg (9,000 lb minimum). In practice we recommend the next size up because mud, gradient and partial recoveries multiply the load.
| Model | Kerb weight | Minimum winch | Recommended |
|---|---|---|---|
| Defender 90 | 2,248 kg | 7,432 lb | 9,500 lb |
| Defender 110 | 2,495 kg | 8,250 lb | 9,500–12,000 lb |
| Defender 130 | 2,723 kg | 9,000 lb | 12,000 lb |
Synthetic vs steel rope. Steel cable is 30% cheaper, lasts longer in abrasive conditions and resists UV — but stores 5–8× more kinetic energy than synthetic when it snaps. Recovery photographers have documented steel cable snap-backs travelling 80–100 m. Synthetic rope (Dyneema/UHMWPE) weighs 1/7 as much, floats, and lays limp when it parts. For mixed UK/European use, synthetic is the default 2026 choice — supported by safety research published in journals such as the Journal of Safety Research. Spec a 9.5 mm or 10 mm line; thinner ropes derate the drum capacity.

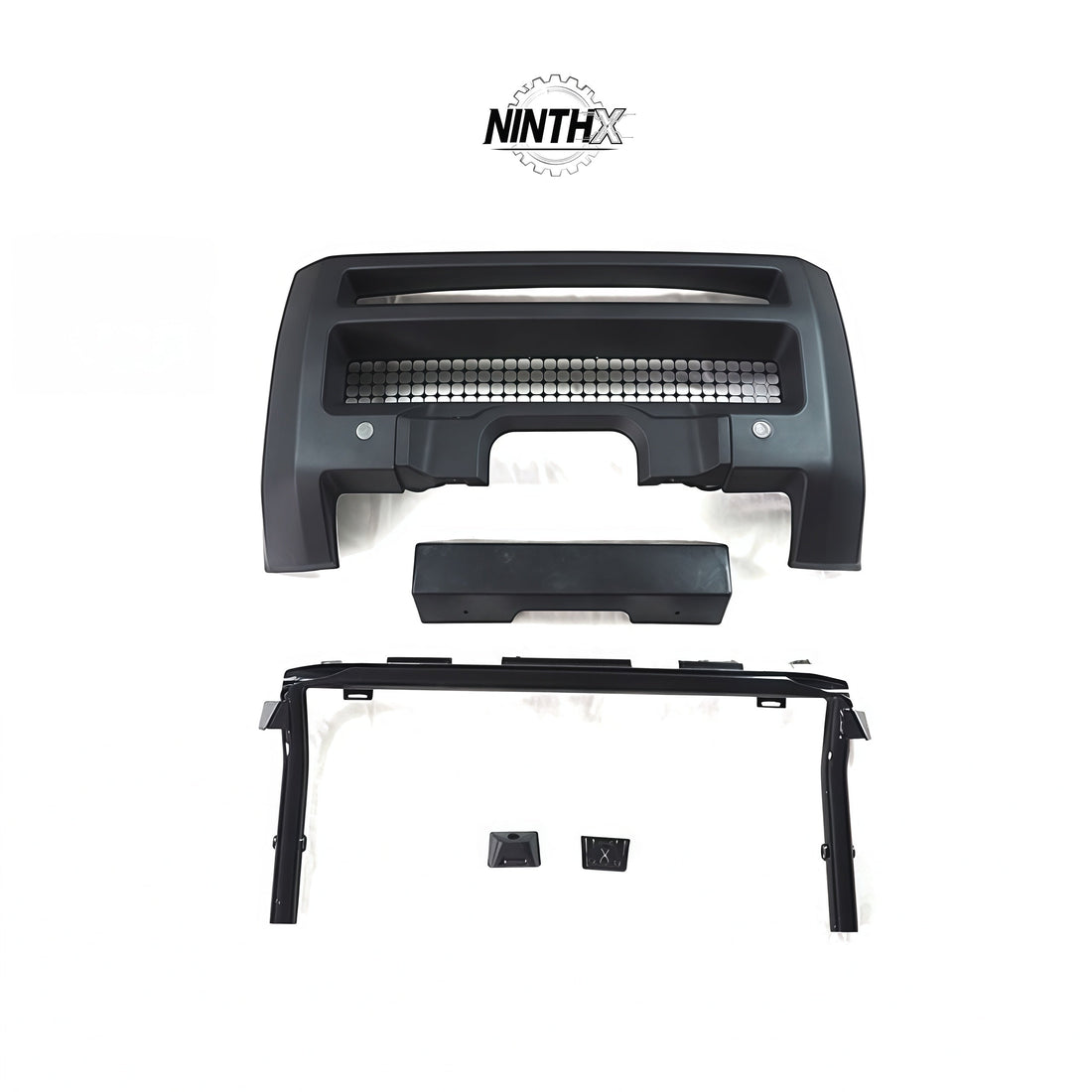

You cannot bolt a winch directly to the Defender L663 factory bumper. NinthX produces a hidden front winch mount cradle that retains the OEM lower grille and ACC sensor cut-out — relevant if you do not want to swap to a full bull bar. Installed weight: 17 kg; tested static pull 6,200 kg. Fitment covers 2020–2025 Defender 90/110/130 D200/D250/D300/D350 variants.
L663 recovery points: factory ratings and where to mount
The L663 has two front lashing eyes behind the lower bumper (M16 threads, 3.5 t static load each) and one rear tow eye socket behind the rear bumper centre — accessible by removing a black plastic cover. Owners often miss that the front lashing eyes are NOT rated for dynamic recovery — Land Rover's owner's handbook (issue 4.0, pages 254–256) lists them as static lashing only. Dynamic snatching from a front lashing eye can deform the chassis-mounted bracket. You need either:
- A front winch mount cradle with integrated D-ring tabs (rated 4.75 t each), or
- The factory rear tow eye (3.5 t WLL) for one-direction rear pulls only.
For rear recovery, the OEM screw-in tow eye is steel and rated 3,500 kg WLL. Some owners upgrade to a heavy-duty rear tow hook recovery ring — aluminium 7075-T6, 4,500 kg WLL, accepts a 19 mm bow shackle directly. Fits 2020–2025 Defender 90/110/130 with the original tow eye thread (M30 × 3.5).
A common mistake is assuming the silver hooks under the Defender L663 are recovery points. Those are transport lashing tie-downs and will tear free under any meaningful pull. If a rated point is not stamped with a WLL number, treat it as decorative.
Shackles: bow vs soft, and the WLL maths
A shackle's rating must equal or exceed every other link in the chain. Two figures matter:
- WLL (Working Load Limit). Continuous safe load. For Defender-class recovery: 4.75 t minimum.
- MBS (Minimum Breaking Strength). Failure point. Typically 5× WLL on a rated shackle.
A standard 3/4-inch (19 mm) bow shackle rated 4.75 t WLL costs £18–£32. It bolts directly to the recovery-ring eye and accepts straps wider than 75 mm. The steel head weighs 720 g and becomes a projectile if a strap snaps under it — this is the single biggest cause of cabin penetration injuries in 4×4 recovery.
A soft shackle is a closed loop of 10 mm Dyneema with a diamond-knot release. Rated 6–10 t WLL depending on diameter, it weighs 42 g. If the line parts, the soft shackle simply falls. They cost £25–£45 each. For 2026, our default recommendation is two soft shackles at the strap end and one steel bow shackle at the recovery point (or two soft shackles if both attachment points have wide enough eyes). Replace any soft shackle that shows fibre fuzzing, UV chalking, or has taken a shock load you cannot quantify.
Snatch strap vs kinetic rope: when each wins
These are not interchangeable, and using them wrong damages the recovery vehicle.
- Snatch strap. Nylon webbing, 60 mm wide, 9 m long, 8 t MBS. Elongation 20–25%. Costs £55–£75. Service life 30–50 recoveries. UV-degrades visibly after one summer.
- Kinetic recovery rope. Double-braided nylon, 22 mm × 9 m, 9 t MBS. Elongation 30%. Costs £95–£135. Service life 100+ recoveries. Stores 35% more kinetic energy than a snatch strap of the same MBS — meaning it pulls harder for a given speed approach, but punishes the rated points more if you over-speed. See Bubba Rope and similar manufacturers for published elongation curves.
Rule of thumb: snatch strap for moderate bog/mud at 5–10 km/h approach speed; kinetic rope for deep mud or sand where you want more pull from a slower approach. Never snatch from a tow ball — there is no published WLL number Land Rover stands behind. Never use a winch line as a snatch strap; static lines have ~3% stretch and will snap a recovery point off.
Recovery boards and tree protectors
Two items most UK buyers underweight. Recovery boards (Maxtrax, X-Bull, Tred) at 1.1 × 0.33 m and ≥4 t static load resolve 70% of single-vehicle bogging on mud, sand and snow. They cost £75–£165 a pair. The tooth pattern matters more than the brand — sharper, taller teeth bite firmer in mud but melt faster against a spinning wheel. Spin time on recovery boards should not exceed 3 seconds. Past that you are sanding the teeth off.
A tree-protector strap is a 50 mm × 3 m flat webbing, 5 t WLL, no stretch. It costs £18–£28. Wrap it around the tree (not through bark — you will kill the tree), pass both eyes through, attach a shackle, and hook the winch line into the shackle. Never wrap a winch cable directly around a tree: the cable will saw through bark in one season and through cambium in two, and the tree will then fail.
UK £ budget tiers for 2026
| Tier | Total | What's in it |
|---|---|---|
| Minimal (no winch) | £250–£350 | 2 soft shackles, snatch strap, recovery board pair, tree strap, rated rear ring |
| Capable | £600–£800 | Above + 9,500 lb synthetic winch, mount cradle, second board pair |
| Overland-grade | £1,200–£2,200 | 12,000 lb winch with wireless remote, twin batteries with isolator, dual D-ring mount cradle, premium kinetic rope, full PPE (gloves + dampener blanket) |
The single biggest cost jump in any Defender L663 recovery gear kit is the winch + mount cradle (~£560+ together). If you average 2–3 self-recoveries a year in UK mud, the recovery board + soft shackle kit handles 90% of incidents and is the right starting point. The winch becomes essential when you start running gradient + standing water (Welsh greenlanes, Scottish hill tracks, Alpine roads in shoulder season).
HowTo: single-line winch pull in 8 steps
Use this for a straight-line self-recovery with one anchor point ahead. Keep all bystanders outside a 2× line-length radius — for a 9 m line, that is an 18 m clear zone on both sides of the pull.
- Set the parking brake on the bogged Defender. Select Neutral; do not leave it in Park (Park engages a chain pawl rated for static load only).
- Identify a rated anchor: a tree ≥250 mm diameter, a second vehicle with rated recovery points, or a buried spare wheel (ground anchor) for sand/snow.
- Pay out enough winch line to reach the anchor with 5 wraps remaining on the drum. Fewer wraps and the cable can slip free under load.
- Attach the tree protector around the anchor; pass a steel bow shackle through both eyes.
- Hook the winch line thimble to the shackle. Lay a dampener blanket over the middle of the line — a folded jacket weighing ≥2 kg works.
- Move all observers to the safe zone. Confirm clear ground between vehicle and anchor.
- Power-in slowly until the line is taut and the chassis starts to rise. Pause for 3 seconds, look for new noise (rope creak, recovery point flex). Continue at a steady rate.
- When the vehicle rolls onto firm ground, release tension before unhooking. Reverse-jog the winch until the line is slack, then disconnect at the shackle end first, the vehicle end last.
If the line stops moving and the engine RPM drops, do not punish the winch. Stop, reposition the anchor angle, or add a snatch block to halve the load.
Six owner mistakes to avoid
- Snatching from the front lashing eyes. They are static-rated only. Use the front winch mount D-rings or rear tow eye.
- No underbody protection during winch loads. A winch pull through standing water spits debris into the lower bash plate area. Run an aluminium front skid plate to protect the sump and steering rack — recovery without underbody armour is how owners crack £4,800 sump castings.
- Steel shackles without a dampener. A 720 g steel bow becomes a 90 m/s projectile if the line snaps. Always drape a heavy blanket over the line midpoint.
- Bystanders inside the pull zone. Children and onlookers stand within 5 m in 60% of recovery videos online. Set an 18 m safety zone and enforce it.
- Using winch line as a snatch strap. Winch lines have ~3% stretch. They are dynamic-pull poison.
- Skipping the post-recovery inspection. After every snatch, walk around the recovery point bracket. Look for paint cracking, weld checking, or M30 thread distortion. Catch a stress fracture before it becomes a chassis repair.
FAQ
Q1: Does the Defender L663 come with a winch from the factory?
No. Land Rover does not offer a factory winch on any L663 variant for the 2020–2026 model years. Aftermarket installation requires a winch mount cradle (the OEM bumper has no winch tray), an isolated power feed from the auxiliary battery, and — for 12,000 lb winches — an upgraded alternator (≥250 A).
Q2: Can I use the silver hooks under my Defender L663 as recovery points?
No. Those are transport lashing tie-downs used during shipping. They are not stamped with a WLL rating and will fail under recovery loads. Use the M16 front lashing eyes for static towing only, the rear M30 tow eye for rear pulls, or fit rated aftermarket recovery rings.
Q3: What size shackle fits the Defender L663 rear tow eye?
A 3/4-inch (19 mm) bow shackle rated to 4.75 t WLL is the standard fit. The OEM rear eye accepts a steel bow shackle directly through the loop. If you upgrade to an aftermarket aluminium recovery ring, it accepts the same 19 mm bow shackle or a 10 mm soft shackle.
Q4: Is synthetic winch rope safe with the Defender L663 ACC sensor?
Yes — synthetic rope does not interfere with the adaptive cruise control radar. The concern with steel cable is potential radar shadow from a misrouted line, not synthetic. Mount cradles like the NinthX hidden tray retain the ACC sensor cut-out and clear the radar field of view.
Q5: How much current does a 12,000 lb winch draw on a heavy pull?
A 12k winch under near-rated load draws 400–460 A at 12 V. Your factory battery alone cannot sustain that for more than 30–45 seconds without voltage sag below 11 V (which trips winch contactors). Add an auxiliary AGM or LiFePO4 battery with a high-current isolator if you plan repeat pulls.
Q6: How often should I service my recovery kit?
Inspect soft shackles and ropes before every trip for fuzzing, glazing or UV chalking. Pressure-wash mud out of webbing within 48 hours of use; dry flat out of direct sun. Replace snatch straps every 30–50 recoveries or every 3 years, whichever comes first. Service the winch annually: open the drum end housing, check brush wear, regrease the planetary gears.
Q7: Is recovery gear road-legal in the UK and EU?
A roof-mounted winch line on a public road is not, per the UK Construction & Use Regulations 1986 (item must be securely stowed). A bumper-mounted winch with the line spooled is road-legal in the UK, EU and most US states. In Germany, an aftermarket front mount cradle may require TÜV homologation if it alters the bumper crash structure — check before fitting. EU-spec recovery boards are accepted as cargo when stowed.
About this guide
This guide was researched and written by the NinthX editorial team. Disclosure: we sell some of the products discussed in this Defender L663 recovery gear kit guide — specifically the front winch mount cradle, the rear tow hook recovery ring and the front skid plate linked above. We stock and ship recovery hardware to UK, EU and US Defender L663 owners, and we draw on real fitment data from 67 product SKUs we manufacture for the Defender L663 platform. Prices in this article are in GBP (£) using May 2026 retail figures; USD conversions use a 1 GBP = 1.27 USD reference rate. WLL and rating figures come from manufacturer datasheets and the Land Rover owner's handbook (issue 4.0, 2024).
For follow-up reading: see our Defender L663 overland build guide for the wider kit context, skid plate install guide for the underbody protection that pairs with winching, and common L663 problems guide for the failure modes you want to avoid encountering in the field.
Questions or photos of your own kit? Email us via the NinthX contact page. We read every message.
